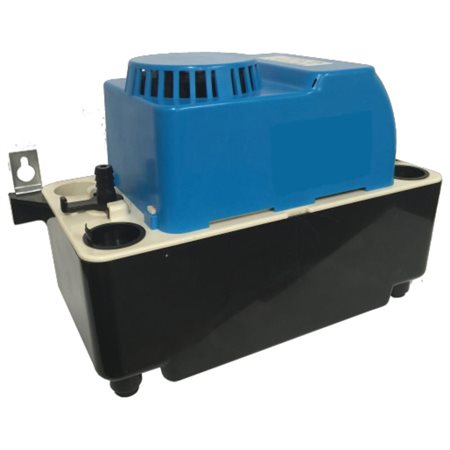

SUPCO 115V CONDENSATE PUMP WITH 22FT LIFT

SUP SPCP115
IN STOCK
Login for Store Location Quantities
$111.43
Length: 12.00
  • Packaging: EA

    • High quality pump designed to remove condensate from AC systems, condensing furnaces and boilers, ice machines, drinking fountains, and coolers. These pumps incorporate an audible alarm, and an overflow switch that can be used to shut down the system.

    Features/Benefits

    • 22 feet of standard lift @ 10 GPH
    • Independent N.C. (Normally Closed) safety switch & motor switch
    • Suitable for acidic condensate
    • 1/4" quick connect terminals
    • 3 terminals provided for easy connection
    • Independent N.O. (Normally Open) audible alarm switch rated @ 80 dB
    • Specially designed leak-free motor and safety float
    • 3/8" rubber ball check valve
    • Vibration absorbing feet
    • Metal side mount tabs, 11.5" on center
    • 3 inlet holes
    • 6 foot power cord included
    Motor Horsepower: 1/10 HP
    Voltage: 115 VAC
    UL® Listed: Yes
    Watts: 80 W
    Amperage: 1.45 A
    Frequency: 60 Hz
    Motor Overload Protector: Yes
    Height (Total): 7.25"
    Length (Total): 11.25"
    Width (Total): 5"
    Tank Capacity: 1/2 Gal.
    Discharge: 3/8" Barb
    Maximum Temperature: 110° F
    Alarm Sound Level: 80 dB
