Ranked #61 in Switches & Covers
*Actual product may vary from image shown

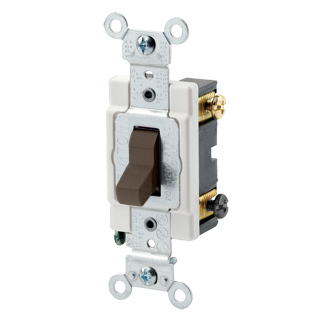

Leviton Brown 20A 120/277V Switch

LEV CSB2-20
IN STOCK
$10.60
  • Packaging: EA
  • Brand Features

    Leviton’s Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.

    Item Description

    20 Amp, 120/277 Volt, Toggle Double-Pole AC Quiet Switch, Commercial Spec Grade, Grounding, Back & Side Wired, - Brown

    • AC Horsepower Ratings
    • HP Rating: 1HP-120V 2HP-240V-277V
    • Electrical Specifications
    • Amperage: 20 Amp
    • Voltage: 120/277 Volt
    • Max. Amperage: 16 Amp
    • Dielectric Voltage: Withstands 1500V for 1 minute
    • Temperature Rise: Maximum 30 degrees C rise
    • Environmental Specifications
    • Flammability: Rated V-2 per UL94
    • Operating Temperature: -40ºC to 65ºC
    • Material Specifications
    • Body Material: Thermoplastic
    • Base Material: PBT
    • Strap Material: Steel
    • Actuator Material: Thermoplastic
    • Toggle: Polycarbonate
    • Cover Material: Nylon
    • Contacts: Silver-Cadmium .031 Thick
    • Terminal Screws: Steel 8-32
    • Color: Brown
    • Mechanical Specifications
    • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
    • Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
    • Termination: Back & Side
    • Product ID: Stamped on Strap
    • Torque Range: 12-14 inch pounds
    • Product Features
    • Voltage: 120/277 Volt
    • HP Rating: 1HP-120V 2HP-240V-277V
    • Actuator Material: Thermoplastic
    • Color: Brown
    • Warranty: 10-Year Limited
    • Standards and Certifications
    • NEMA: WD-1 & WD-6
    • ANSI: C-73
    • UL Fed Spec WS896E: File #E7458
    • UL Standard: UL 20
    • CSA C22.2 No. 111: File #152105
    • NOM: 057
    • Warranty: 10-Year Limited
