Ranked #10 in Lighting Fixtures
*Actual product may vary from image shown

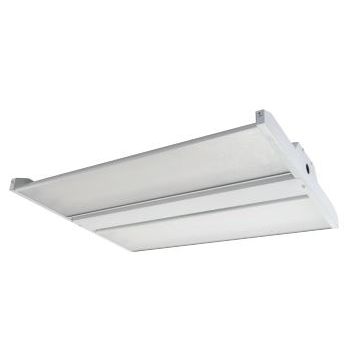

Keystone LED 105W High Bay Fixture, 5000K,13650 Lumens

  • $175.93
    Length: 24.50
  • Packaging: EA
  • Complete compact LED high bay fixture

    Used for commercial and industrial high bay lighting applications

    Architectural grade compact design

    • Powered by Keystone 0-10V dimming LED drivers

    • Frosted lens eliminates glare

    • V-hook and chain mounting accessories included

    • 0-10V dimming, 10% minimum

    • Compatible with Keystone SmartSafe emergency LED drivers

    • Compatible with Keystone 480-277V step down transformers

    • Ambient operating temperature: -20ºC/-4ºF to 50ºC/122ºF

    • UL Listed 1598: Suitable for dry and damp locations

    • THD: <20%

    • Power factor > 0.95

    • LED chip lifetime, L70 >100,000 hours @ 25ºC/77ºF ambient fixture temperature

    Catalog Number: KT-HBLED105-2F-850-VDIM-P

    Color Temperature:  5000K

    Nominal Length: 2'

    CRI:  >82

    Input Voltage: 120-277V

    Wattage:  105W

    Lumen Output: 13,650

    Efficacy: 130 lm/W

    Length: 24.40”

    Width: 15.00”

    Height: 2.40”

    Weight: 5 lbs
